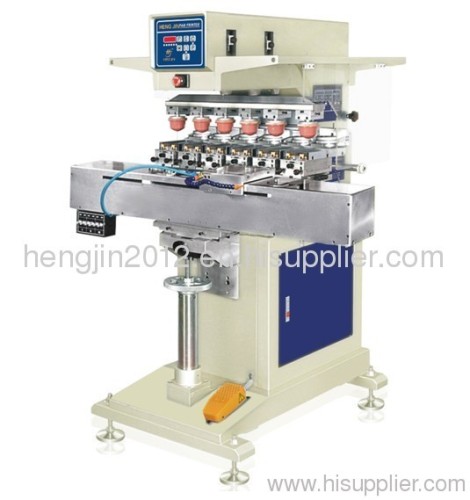

HP-200F6 colors pad printer with shuttle, HOTSALE 6 colors pad printer with shuttle, pad printing machine, pad printingmachine with shuttle
HOT SALE 6 colors pad printermachine is well-designed and universal type which apply for necessities, toys,electrons, electrical equipment, plastics, leather, metal, glass, light industryand food packages etc.
Feature of themachine:
Place of Origin | Guangdong, China (Mainland) |
Brand Name | HENGJIN |
Model Number | HP-200F |
Type | Pad Printer |
Plate Type | Flatbed Printer |
Usage | 6 colors pad printer with shuttle |
Color & Page | Multicolor |
Automatic Grade | Semi-Automatic |
Condition | New |
Dimensions(L*W*H) | 1030*1045*1450mm |
Gross Power | 196KG |
Cylinder | Germany FESTO |
Barometer | FESTO |
Magnetic Valve | FESTO |
Surface Material | Alloy Cast Aluminum |
Stardard | CE Certification |
1.The printing speed is slowlythan conveyor, but which suitable bigger prodcuts, per time printing 6colors.
2.Thismachine is Semi-automatic,having automatic counter for 4 digits;
3. The machine can do your anyrequirements, and per position can adjustable the delay function, and printingspeed also can adjustable;
4.Accurate position. worktable can be adjusted and fixed,such as: left/right,front/back, any angles ,etc;
5.The body is Alloy CastAluminium,then it s lighter and durable.The color of body isdusting,which is precise and more nice;
6.The cylinder of Machinewas used Germany FESTO. The thickness f the screw we used 8.75Degree. Which have more usage about 20 years;
Parameters of machine:
Item Number | HP-200F | Printing color | 6 colors |
Printing speed | 500pcs/hr | Max Printing size | 75mm*120mm |
Printing plate size | 100mm*150mm(4"X6") | Distance of U tray | 114.3mm |
Worktable size | 160mm*220mm | Workpeice heigh | 100mm |
Voltabe of source | 220VAC/1 phase 20W | Air supply | 6Bar |
Dimetion | 1030*1045*1450mm | Net weight | 124KG |
